Defender Wideband Series

Flexible, Multi-purpose

Defender's flexibility and ability to reactively channel power have become key and extremely important for successful protection from UAV attacks as narrowband or dedicated bandwidth jammers become obsolete with each new change in frequency bands for UAVs for communication or video purposes. Wideband series can stand up to the toughest of environments, be it for telecoms or CUAS application.

Jamming profile encryption Safe in transit, decrypted on jammer
Integration via REST Api Other protocols possible on request
Protection area extension via multiple synchronized jammers
Warranty up to 5 years 2 years as standard
Dedicated Software

Products

Following products are our baseline offering which can be tailored to client budget and project needs. In case if dedicated solution is required feel free to contact us or schedule a test to check if our jammers will meet your needs.

WB6500 WB7000GM

WB7000GM

Professional level Defender designed to eliminate professional commercial and FPV UAVs possessing GNSS jamming capabilities preventing flight of UAV along waypoint or checkpoints.

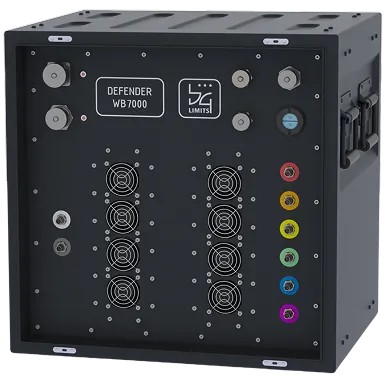

Product image

Datasheet

Neutralization

RF Power 700 W
Bandwidth supported 500 - 6000 MHz Fully programmable
Exemplary bands 868 MHz, 915 MHz, GSM, UMTS, LTE, 5G, WiFi 2.4 GHz, 5.2 GHz, WiFi 5.8 GHz, GNSS List of bands covered by jammer is not limited to above
Simultaneous bandwidth Up to 2250 MHz Freely definable
Power consumption 3200 W
Jamming distance
  • Omnidirectional: 3 km
  • Directional: 5 km
Performance indicators are illustrative and apply to C1 class drones operating in accordance with EU standards

RF Performance

Detection sensitivity -110 dBm
Reaction time
  • Active: 0 μs
  • Reactive: 36 μs
  • Semi - reactive: 18 μs
RX / TX Isolation 50 dB

Configuration

Jamming modes
  • Reactive
  • Semi - reactive
  • Active
Mixed usage is possible
Jamming algorithms
  • Continuous Wave
  • Sweep
  • Arbitrary Sweep
  • Barrage
Mixed usage is possible

Physical

Dimensions 450 x 450 x 700 mm
Weight ca. 80 kg
Temperatures
  • Operation: -30 °C to 50 °C
  • Storage: -40 °C to 60 °C
Supply voltage DC or AC Depending on configuration
Housing version 19” rack or custom design
Antennas min. 7 Depending on configuration more antennas could be required
Compliance
  • MIL-STD-461G*
  • MIL-STD-810H*
Designed to meet*
