Defender Wideband Series
Flexible, Multi-purpose
Defender's flexibility and ability to reactively channel power have become key and extremely important for successful protection from UAV attacks as narrowband or dedicated bandwidth jammers become obsolete with each new change in frequency bands for UAVs for communication or video purposes. Wideband series can stand up to the toughest of environments, be it for telecoms or CUAS application.
Jamming profile encryption Safe in transit, decrypted on jammer
Integration via REST Api Other protocols possible on request
Protection area extension via multiple synchronized jammers
Warranty up to 5 years 2 years as standard
Dedicated Software
Products
Following products are our baseline offering which can be tailored to client budget and project needs. In case if dedicated solution is required feel free to contact us or schedule a test to check if our jammers will meet your needs.

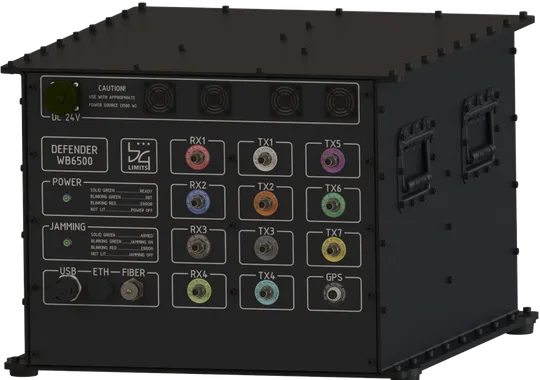

WB6500
Baseline level Defender designed for multi purpose usage.
Datasheet
Neutralization
RF Power 650 W
Bandwidth supported 500 - 6000 MHz Fully programmable
Exemplary bands 868 MHz, 915 MHz, GSM, UMTS, LTE, 5G, WiFi 2.4 GHz, 5.2 GHz, WiFi 5.8 GHz, GNSS List of bands covered by jammer is not limited to above
Simultaneous bandwidth Up to 1800 MHz Freely definable
Power consumption 3000 W
Jamming distance
- Omnidirectional: 3 km
- Directional: 5 km
RF Performance
Detection sensitivity -110 dBm
Reaction time
- Active: 0 μs
- Reactive: 36 μs
- Semi - reactive: 18 μs
RX / TX Isolation 50 dB
Configuration
Jamming modes
- Reactive
- Semi - reactive
- Active
Jamming algorithms
- Continuous Wave
- Sweep
- Arbitrary Sweep
- Barrage
Physical
Dimensions 640 x 540 x 400 mm
Weight ca. 56 kg
Temperatures
- Operation: -30 °C to 50 °C
- Storage: -40 °C to 60 °C
Supply voltage DC or AC Depending on configuration
Housing version 19” rack or custom design
Antennas
- 4 RX
- 7 TX
