Defender Manpack Series

Dedicated, Multi-purpose compact solution

Defender's manpack offers flexibility. It can be used as a standalone solution requiring smaller amounts of emitted power or a powerful, stackable version of the Defender Wideband series. Manpack’s ability to reactively channel power has become key and extremely important for successful protection from unwanted radio signals for telecom and UAV application as narrowband or dedicated bandwidth jammers become obsolete with each new change in radios and frequency bands. Defender Manpack series can stand up to the toughest of environments, be it for telecoms or CUAS application.

Jamming profile encryption Safe in transit, decrypted on jammer
Portable
Protection area extension via multiple synchronized jammers
Warranty up to 5 years 2 years as standard
Dedicated Software
Integration via REST Api Other protocols possible on request

Products

Following products are our baseline offering which can be tailored to client budget and project needs. In case if dedicated solution is required feel free to contact us or schedule a test to check if our jammers will meet your needs.

MNB75T5G MWB200G

MNB75T5G

Professional level Manpack designed to block 5G telecommunication signals on short and medium distances in indoor and outdoor environment.

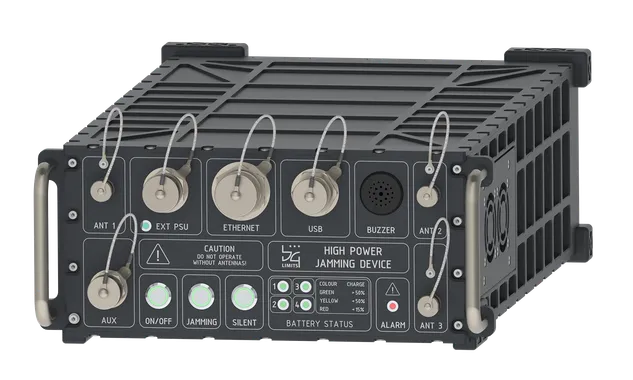

Product image

Datasheet

Neutralization

RF Power 75 W
Bandwidth supported
  • 694 - 790 MHz
  • 3400 - 3800 MHz
Fully programmable
Exemplary bands 5G 700MHz, 5G 3.4-3.8 GHz
Simultaneous bandwidth Up to 500 MHz Freely definable
Power consumption 350 W
Jamming distance Omnidirectional: 200 m Performance indicators are illustrative and depend on the environment

RF Performance

Detection sensitivity -110 dBm
Reaction time
  • Active: 0 μs
  • Reactive: 36 μs
  • Semi - reactive: 18 μs
RX / TX Isolation 50 dB

Configuration

Jamming modes
  • Reactive
  • Semi - reactive
  • Active
Mixed usage is possible
Jamming algorithms
  • Continuous Wave
  • Sweep
  • Arbitrary Sweep
  • Barrage
Mixed usage is possible

Physical

Dimensions 826 x 533 x 401 mm
Weight ca. 24 kg
Temperatures
  • Operation: -30 °C to 50 °C
  • Storage: -40 °C to 60 °C
Supply voltage DC or AC Depending on configuration
Housing version Custom design
Antennas
  • 1 RX
  • 2 TX
Compliance IP66
